Temperature sensor TP-124, springy ribbon thermocouple

Product description

Sensor for temperature measurement on surfaces of moving cylindrical elements of outher diameter in range 60mm to 120mm(1). Sensor based on springy ribbon thermocouple element.

Technical data

Temperature range -40°C…+250°C (PTFE head)
-40°C…+400°C (steel head)
Measuring element sprung ribbon thermocouple NiCr-NiAl (K)

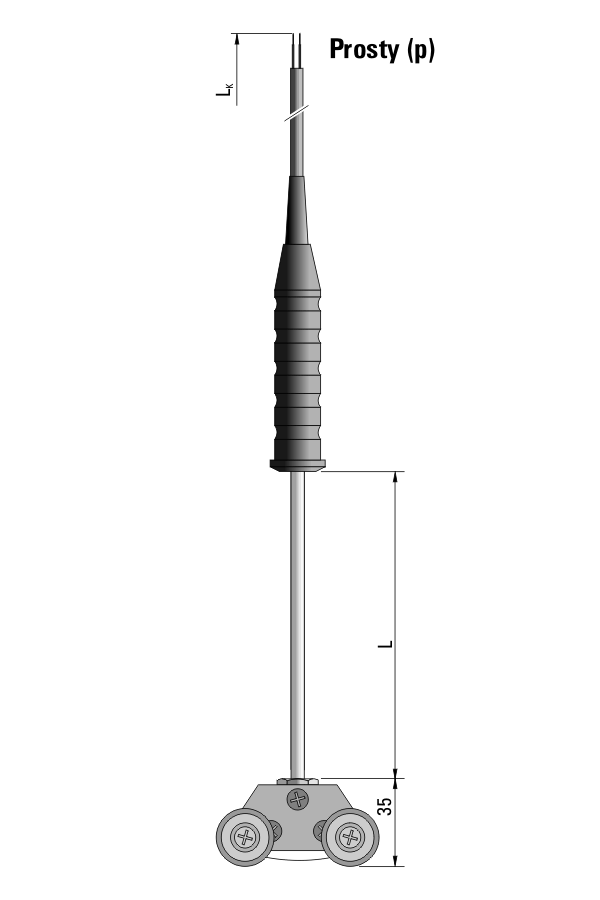

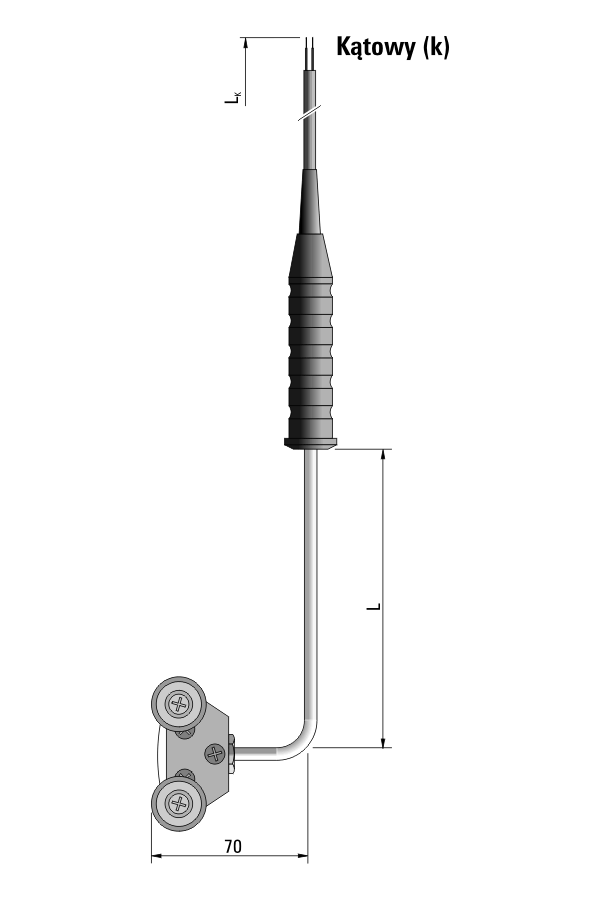

Sensor length L 50, 100, 200, 300, 400 mm
Compensation cable length  1,5 m spiral
Handle and cable operating temperature -20°C…+80°C
Additional accessories MT-K (for use with hand held thermometers) (1)

(1) Other parameters according to customer requirements

Product attachments

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days
