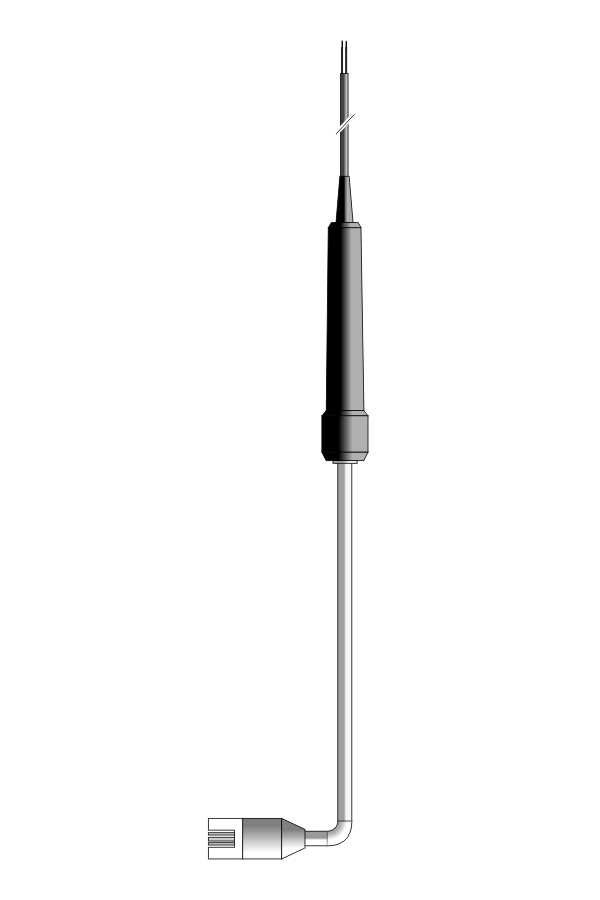

Temperature sensor TP-126, ribbon thermocouple

Product description

Surface temperature sensor for use with portable temperature meters. The ribbon thermocouple element of the sensor ensures very good thermal conductivity.

Technical data

Temperature range -50°C…+700°C
Measuring element ribbon thermocouple NiCr-NiAl (K)
Processing element class 2

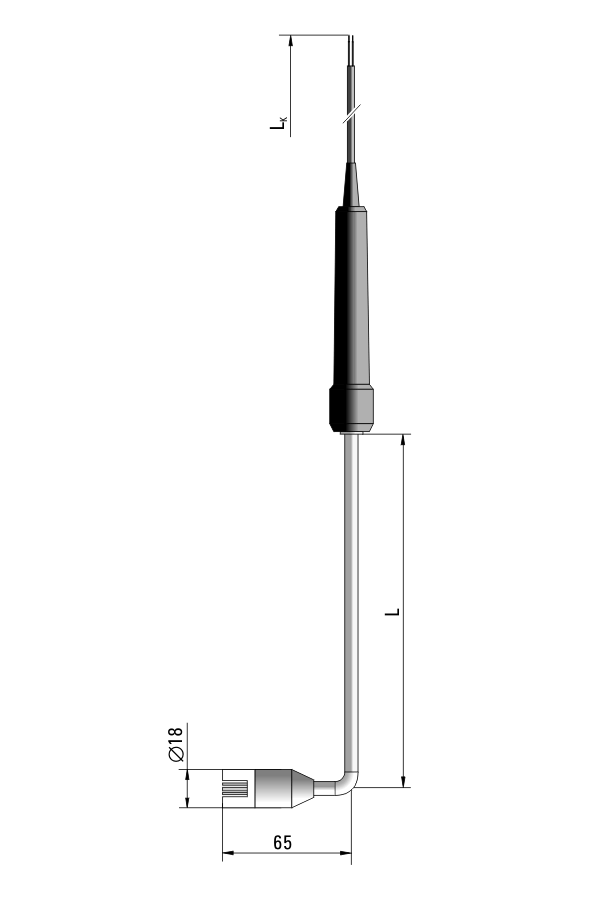

Sensor length L 100, 200, 300, 400 mm
Response time T0,9 <5 sek
Compensation cable length Lk  1,5 m spiral
Handle and cable operating temperature -20°C…+80°C
Additional accessories MT-K (for use with hand held thermometers) (1)

(1) Other parameters according to customer requirements
