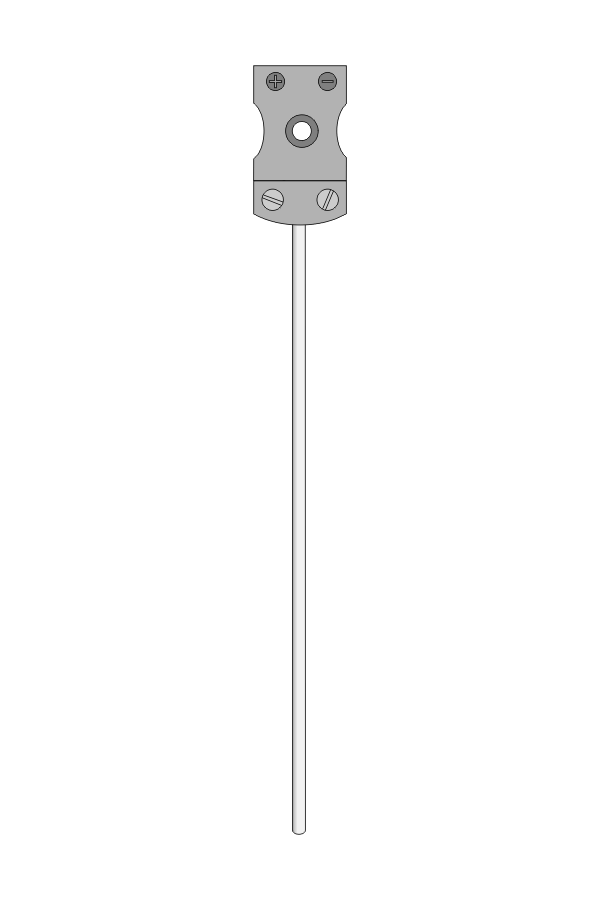

Temperature sensor TP-221_224 sheathed thermocouple with socket MT-G
Product description
Uniwersal sheathed thermocouple sensor with MT-G socket.
Technical data
| Temperature range | ||||
|---|---|---|---|---|
| Type | Cu-CuNi (T) | Fe-CuNi (J) | NiCr-NiAl (K) | NiCrSi-NiSi (N) |
| TP-221 | 300°C | 400°C | 600°C | 700°C |
| TP-222 | 400°C | 600°C | 900°C | 1000°C |
| TP-223 | 400°C | 600°C | 1000°C | 1100°C |
| TP-224 | 400°C | 700°C | 1100°C | 1250°C |
| Thermocouple diameter: | |
| TP-221 | 0.5mm |
| TP-222 | 1.0mm |
| TP-223 | 1.5mm |
| TP-224 | 3.0mm |
| Thermocouple class | 1 |
| Measuring junction | a – grounded |
| b – insulated | |
| c – exposed | |
| Sensor length | 100, 200, 300, 400, 600, 800 mm |
| Sheath material | |
| thermocouple T, J, K | Inconel |
| thermocouple N | Nicrobell |
| Socket operating temperature | -20÷150°C |
| Additional accesories | MT plug |
| compensation cable type L2x | |
| compression gland KP | |
