Temperature sensor TP-365

Product description

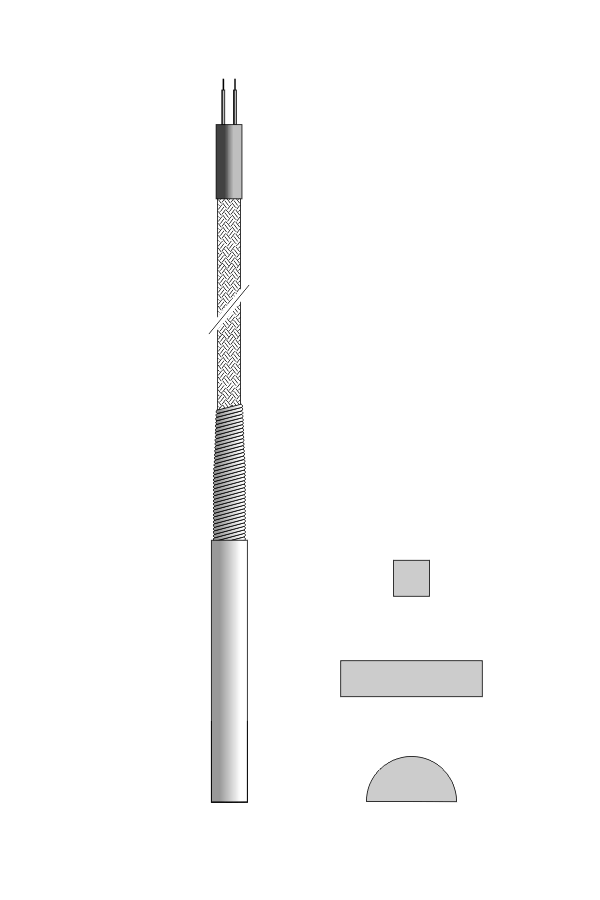

Temperature sensor with special shaped measuring tip.

Technical data

Temperature range	-40÷400°C
Measuring element	platinum resistor Pt100 ⁽¹⁾ thermocouple Cu-CuNi (T) thermocouple Fe-CuNi (J) thermocouple NiCr-NiAl (K)
Measuring element class	2 (B) ⁽²⁾
Measuring junction	insulated ⁽²⁾

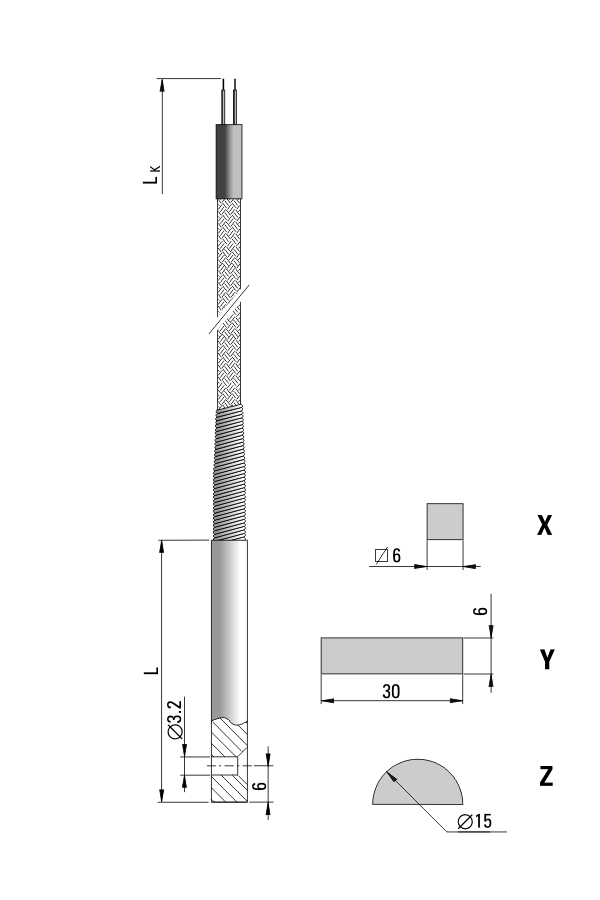

Sheath shape	X: square 6×6 mm Y: rectangle 6×30 mm Z: semicircle 15 mm
Sensor length (L)	30÷200 mm ⁽²⁾
Sheath material	brass
Cable length (Lk)	0.15÷2.5 m ⁽²⁾
Cable insulation	fiber glass and steel braid ⁽²⁾

⁽¹⁾ Pt500, Pt1000, Ni100, Ni1000 on demand
⁽²⁾ Other parameters according to customer requirements

Product attachments

TP-365 data sheet

{"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"resistor-pt100":{"value":"Pt100","input":"0"},"thermocouple-k-nicr-nial":{"value":"K","input":"0"},"thermocouple-j-fe-cuni":{"value":"J","input":"0"},"thermocouple-t-cu-cuni":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"ksztalt-oslony":{"type":"translate","separator":"-","multiple":"0","translations":{"x-square-6x6mm":{"value":"X","input":"0"},"y-rectangle-6x30mm":{"value":"Y","input":"0"},"z-semicircle-15mm":{"value":"Z","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"20":{"value":"","input":"0"},"25":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":"","multiple":"0","translations":{"standard-fiber-glass-and-steel-braid-tmax-400c":{"value":"-","input":"0"},"pvc-tmax-80c":{"value":"(PVC)","input":"0"},"silicone-tmax-180c":{"value":"(silicone)","input":"0"},"ptfe-tmax-260c":{"value":"(PTFE)","input":"0"},"armor-sheather":{"value":"(armor)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wymagania-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"none":{"value":"-","input":"0"},"add":{"value":"(","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"other tip dimensions, 3 or 4 wire resistor , dual sensor etc.","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

measuring element

tip type

cable length Lk [m]

cable sheath material

additional requirements ?

Ordering code:

Remarks:

Add to quote request
