Temperature sensor TP-371

Product description

Universal temperature sensor with threaded fitting.

Technical data

Temperature range -40÷400°C
Measuring element platinum resistor (Pt100) (1)
thermocouple Cu-CuNi (T)
thermocouple Fe-CuNi (J)
thermocouple NiCr-NiAl (K)
Measuring junction insulated (1)
Processing element class 2 (B) (1)
Sheath material steel 1.4541
Cable insulation fiber glass and steel braid (1)

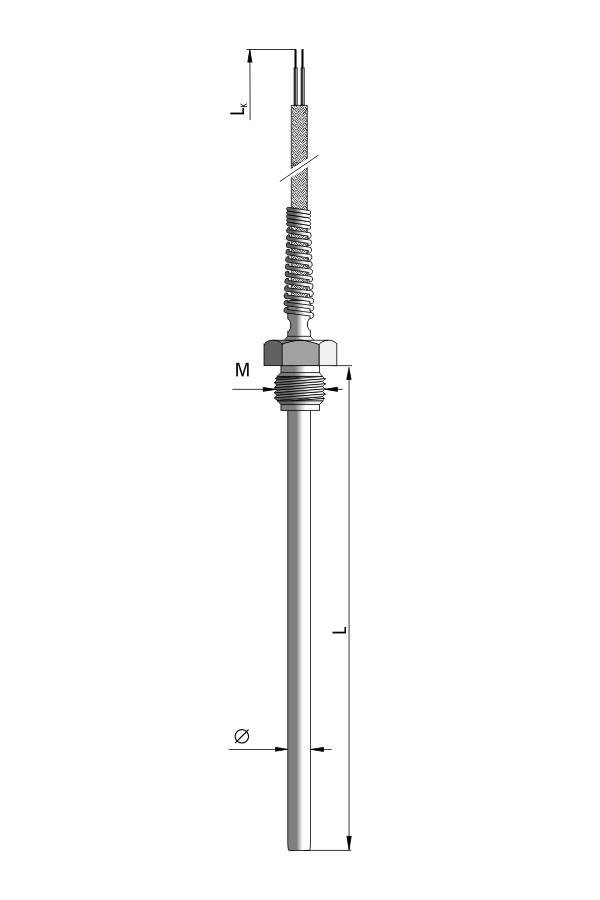

Fitting (M) welded stationary fitting with thread M6, M8x1, M10x1, M12x1,5, M20x1,5, G1/2″ (1)

(1) Other parameters according to customer requirement

Product attachments

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

?
