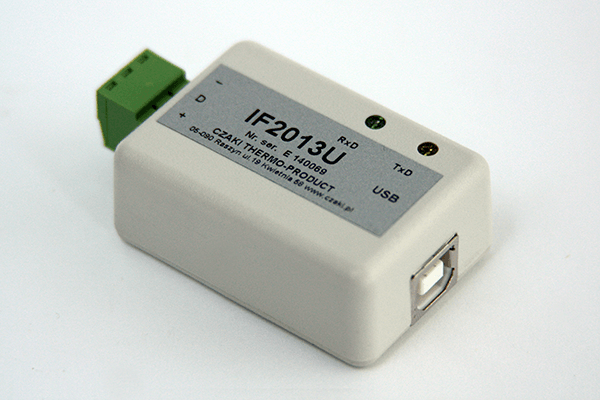

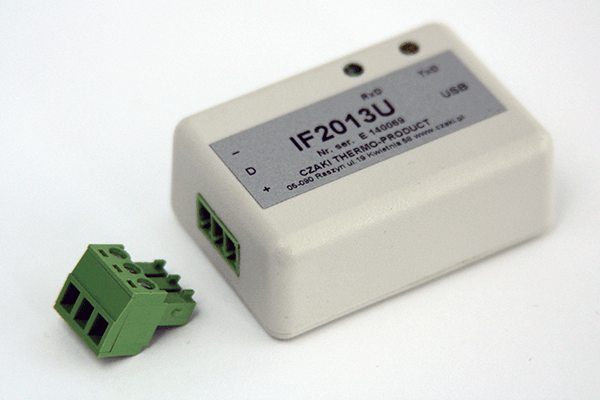

Device programming interface IF-2013U

Product description

Interface for programming / configuring programmable transmitters TEH, TED, DPT-21 series through an USB port. Provides galvanic separation between the USB port and the transmitter.

  • suplied from the computer’s USB port
  • visual indication of data transmission
  • galvanic insulation between the computer and the transmitter
  • derived power supply voltage for the transmitter
  • user-friendly software for PC

Technical data

Computer side connector USB-B socket
Computer side standard USB1.1, USB2.0
Supply current ca 25 mA (programming)
max. 150 mA (short device terminals)
Galvanic insulation between connectors 500 V AC
Programmed device supply voltage 20 V DC ± 2 V DC
Programmed device supply output resistance 250 Ω
Ambient temperature 0 … 50 °C
Dimensions / weigth 50 x 35 x 20 mm / ok. 20 g

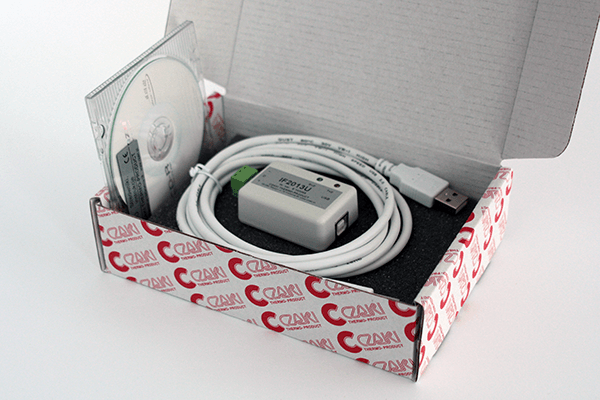

USB A4-B4 cable length 2 m
Cable for connecting device 30 cm
