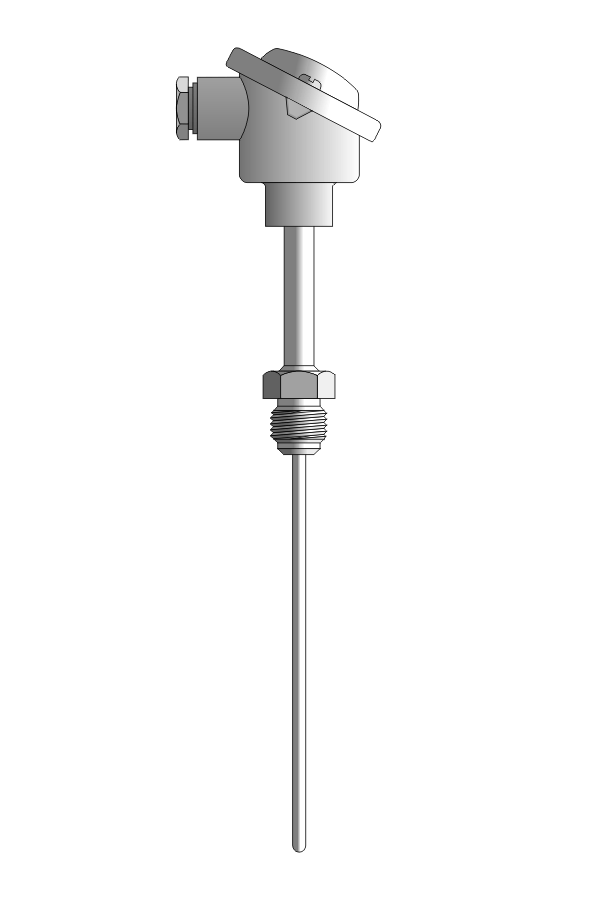

Temperature sensor TP-551_554

Temperature sensor TP-551_554

Temperature sensor TP-551_554

Product description

Sensor for measuring the temperature in receptacles and pipelines.

Technical data

Temperature range	-40÷800°C thermocouple Fe-CuNi (J)
	-40÷1100°C thermocouple NiCr-NiAl (K)
	-40÷1250°C thermocouple NiCrSi-NiSi (N)
Sensor wire config.	single thermocouple J: 1J
	single thermocouple K: 1K
	single thermocouple N: 1N
	double thermocouple J: 2J
	double thermocouple K: 2K
	double thermocouple N: 2N
Sensor class	2
Sensor junction	a: grounded
	b: insulated
	c: exposed

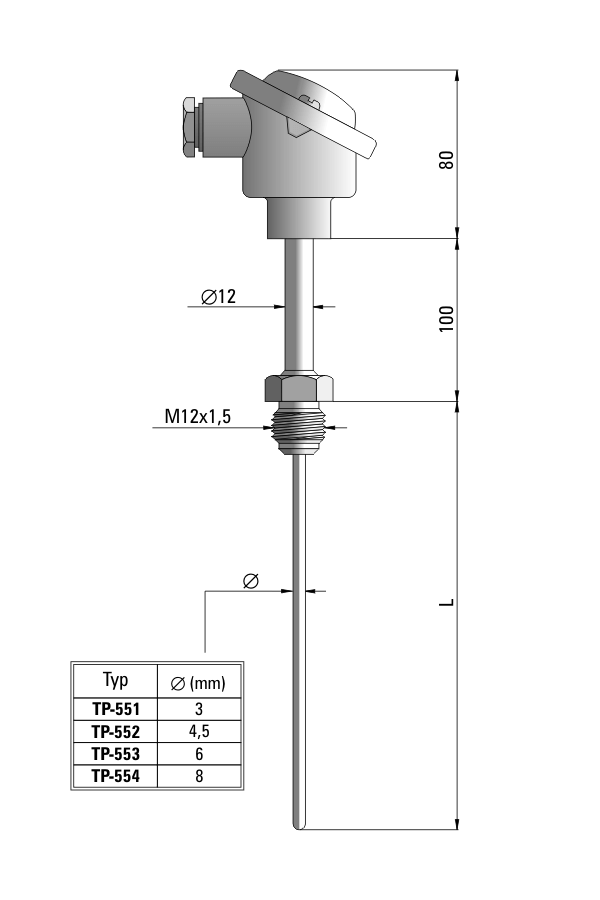

Fitting	M12x1,5
Sheath diameter	3, 4.5, 6, 8 mm
Sheath material	J, K: Inconell
Sheath material	N: Nicrobell
Immersion length (L)	100, 200, 300, 400, 600, 800, 1000 mm
Maximum operating pressure	10 MPa
Head type	B (sensor heads)
Head operating temperature	-40÷100°C
Optional accesories	temperature transmitter
	thermowell for welding
	compensation cable

Product attachments

TP-551_554 data sheet

{"typ-srednica-termoelementu-mm":{"type":"translate","separator":"","multiple":"0","translations":{"tp-551-o3":{"value":"551","input":"0"},"tp-552-o-4-5":{"value":"552","input":"0"},"tp-553-o6":{"value":"553","input":"0"},"tp-553-o8":{"value":"554","input":"0"},"tp-550-other":{"value":"550","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"thermocouple-k-nicr-nial":{"value":"K","input":"0"},"thermocouple-j-fe-cuni":{"value":"J","input":"0"},"thermocouple-n-nicrsi-nisi":{"value":"N","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"termoelement-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"single":{"value":"1","input":"0"},"dual":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"rodzaj-spoiny-pomiarowej":{"type":"translate","separator":"","multiple":"0","translations":{"b-insulated-standard":{"value":"b","input":"0"},"a-grounded":{"value":"a","input":"0"},"c-exposed":{"value":"c","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"no":{"value":"-","input":"0"},"yes":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"inna-srednica-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"1mm":{"value":"(1mm)","input":"0"},"15mm":{"value":"(1.5mm)","input":"0"},"2mm":{"value":"(2mm)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"typ-srednica-termoelementu-mm","is_equal":"550"}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"ba-standard":{"value":"-","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-stainless":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"none":{"value":"-","input":"0"},"thermoweell-for-welding":{"value":"(mufa)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik-temperatury":{"type":"translate","separator":"; ","multiple":"0","translations":{"none":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-teh-with-i-o-galvanic-insulation":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-teh-with-i-o-galvanic-insulation":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"}]}},"zakres-przetwarzania-przetwornika-k":{"type":"translate","separator":"","multiple":"0","translations":{"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"0-1000c":{"value":"65","input":"0"},"0-1200c":{"value":"70","input":"0"},"other":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"K"}]}},"zakres-przetwarzania-przetwornika-j":{"type":"translate","separator":"","multiple":"0","translations":{"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"other":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"J"}]}},"zakres-przetwarzania-przetwornika-n":{"type":"translate","separator":"","multiple":"0","translations":{"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"0-1000c":{"value":"65","input":"0"},"0-1200c":{"value":"70","input":"0"},"other":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"N"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"enter-temperature":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"enter-temperature":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"standard-without-compensation-cable":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pvcbraid":{"value":"PCV\/ekran","input":"0"},"silicone":{"value":"silikon","input":"0"},"siliconebraid":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"enter-length":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

type / thermocouple outer diameter [mm]

measuring element

single/dual measuring element

thermocouple junction

sensor length L [mm]

Option with the head-mount transmitter

head type

additional accessories

Ordering code:

Remarks:
