Temperature sensor TP-792
Product description
Specialized sensor for gas temperature measurement, for exhaust gas analyzers.
Technical data
| Temperature range | 0÷1000°C |
| Measuring element | thermocouple NiCr-NiAl (K) |
| Thermocouple class | 1 |
| Thermocouple junction | insulated |
| Handle and cable operating temperature | –20÷80°C |
| Sheath material | steel 1.4541 |

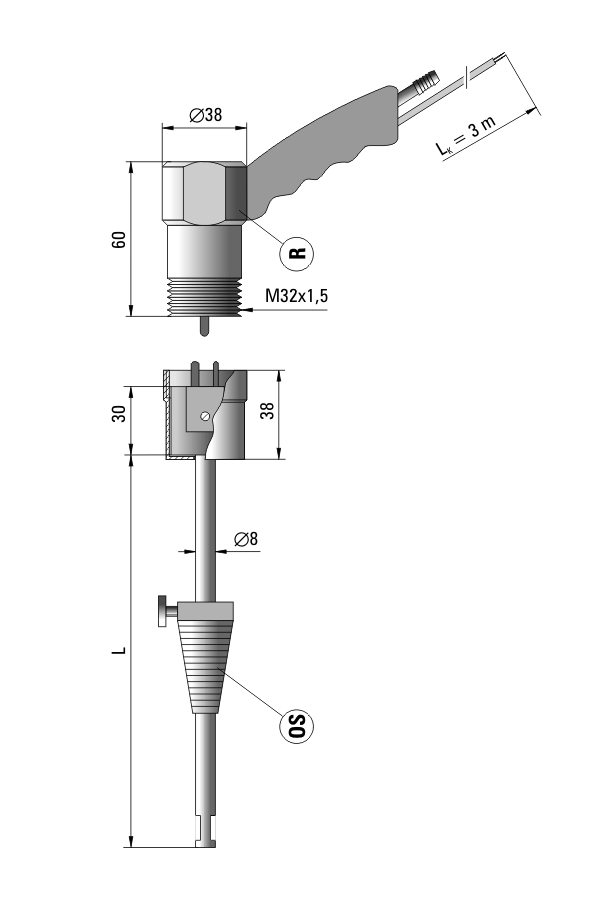

| Sensor length (L) | 500, 700, 1000, 1500 mm |
| Compensation cable length (Lk) | 3 m |
| Optional accesories | conical limiter for sensor immersion depth type OS |
| sensor handle R type |
