Czujnik temperatury TP-294

Opis produktu

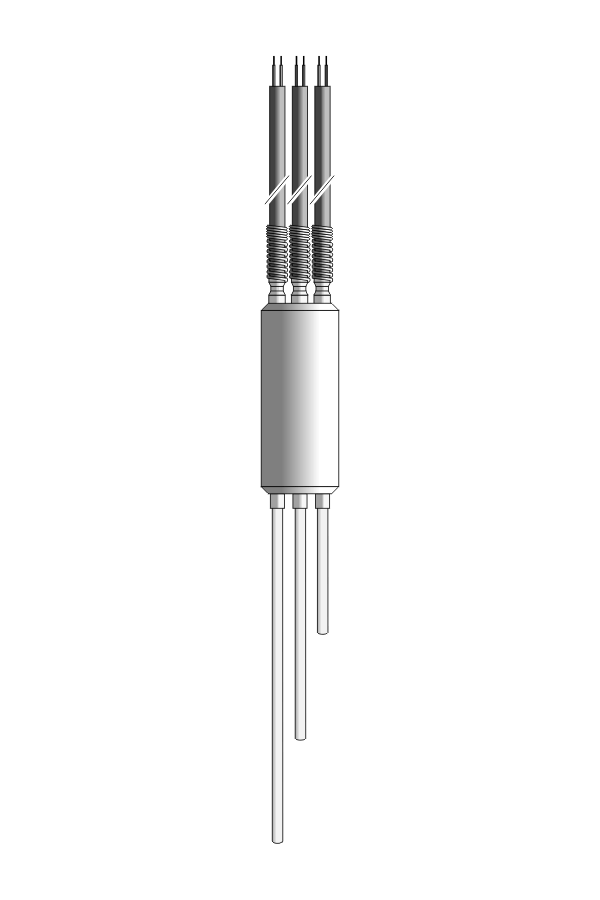

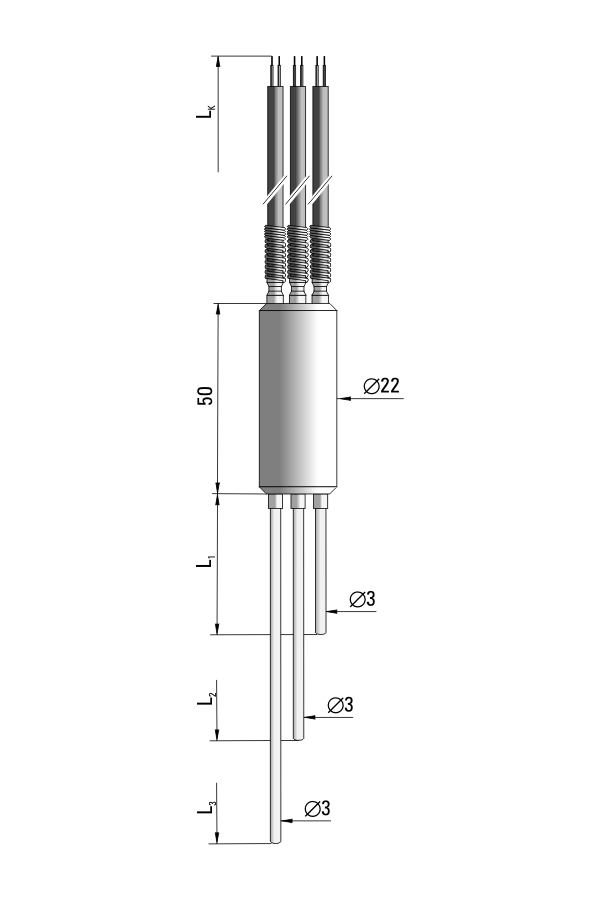

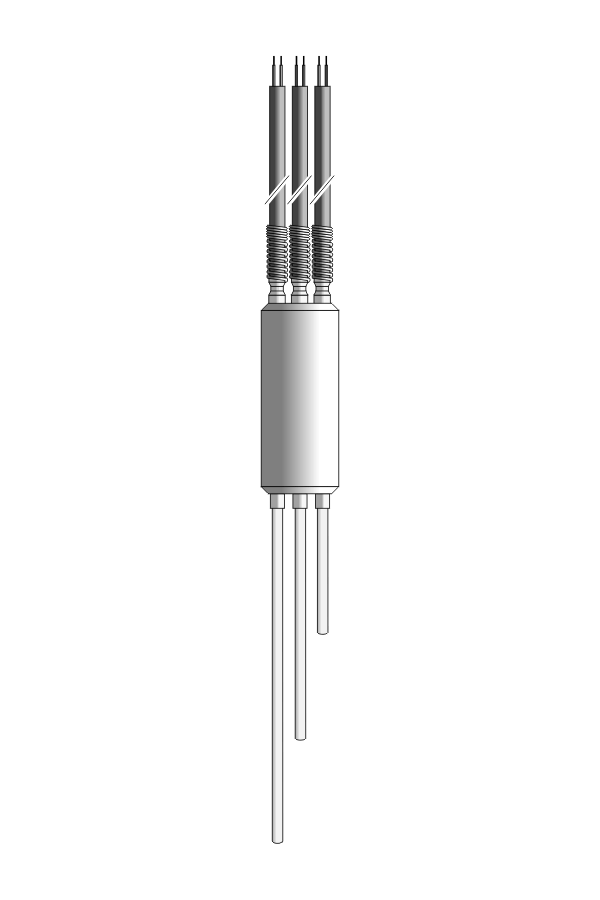

Wieloelementowy czujnik termoparowy do pomiaru temperatury gazów i cieczy w procesach technologicznych na różnych głębokościach zanurzeniowych.

Dane techniczne

Rodzaj termoelementu	Fe-CuNi (J) NiCr-NiAl (K) NiCrSi-NiSi (N)
Zakres pomiarowy	-40÷700°C (J) -40÷1100°C (K) -40÷1250°C (N)
Klasa elementu przetwarzającego	1
Rodzaj spoiny	izolowana
Średnica termoelementów	3,0 mm
Materiał osłony	Inconel (J,K), Nicrobell (N)
Tuleja pośrednicząca	stal 1.4828 Ø22mm
Temperatura pracy przewodów i tulei pośredniczącej	-20÷80°C

Załączniki do produktu

TP-294 karta katalogowa

{"rodzaj-termoelementow-plaszczowych":{"type":"translate","separator":"","multiple":"0","translations":{"k-nicr-nial":{"value":"K","input":"0"},"j-fe-cuni":{"value":"J","input":"0"},"n-nicrsi-nisi":{"value":"N","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"ilosc-termoelementow-plaszczowych":{"type":"translate","separator":"-","multiple":"0","translations":{"2":{"value":"(2)","input":"0"},"3":{"value":"(3)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dl-zanurzeniowa-l1-mm":{"type":"user","separator":"-","multiple":"0","translations":{"wpisz":{"value":"","input":"1"}},"validation":{"required":"0","type":"number","range":[{"from":"0","to":"10000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dl-zanurzeniowa-l2-mm":{"type":"user","separator":"\/","multiple":"0","translations":{"wpisz":{"value":"","input":"1"}},"validation":{"required":"0","type":"number","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dl-zanurzeniowa-l3-mm":{"type":"user","separator":"\/","multiple":"0","translations":{"wpisz":{"value":"","input":"1"}},"validation":{"required":"0","type":"number","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-2","when":[{"field":"ilosc-termoelementow-plaszczowych","is_equal":"3"}]}},"dlugosc-przewodow-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"20":{"value":"","input":"0"},"25":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"number","range":[{"from":"0","to":"100","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

rodzaj termoelementów płaszczowych

ilość termoelementów płaszczowych

dł. zanurzeniowa (L1) [mm]

dł. zanurzeniowa (L2) [mm]

długość przewodów (Lk) [m]

Kod zamówieniowy:

Uwagi:
