głowice czujnikowe
Opis produktu

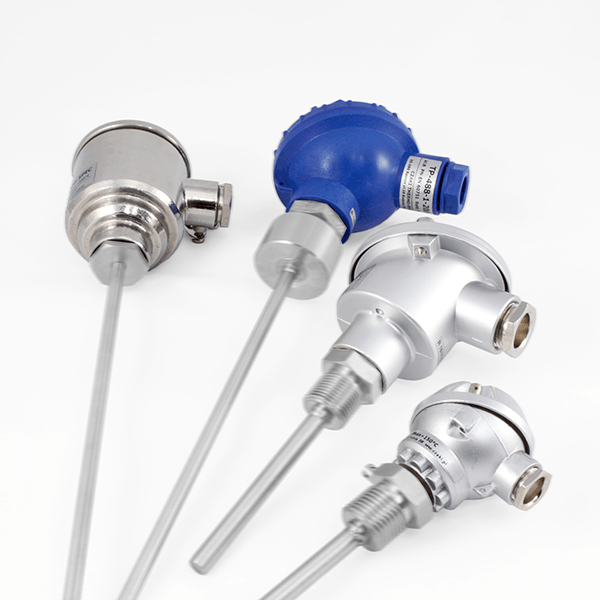

Głowice dla czujników temperatury.
Dane techniczne
| Typ | Materiał | Przyłącze D | Dławik G | Klasa IP | Oznaczenie |
|---|---|---|---|---|---|

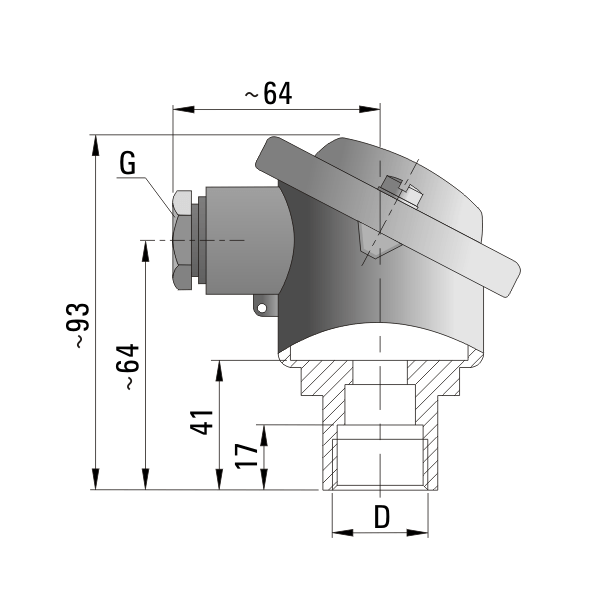

| AA | aluminium RAL9006 | Ø32,5 | P16 | IP 54 | AA-32 |

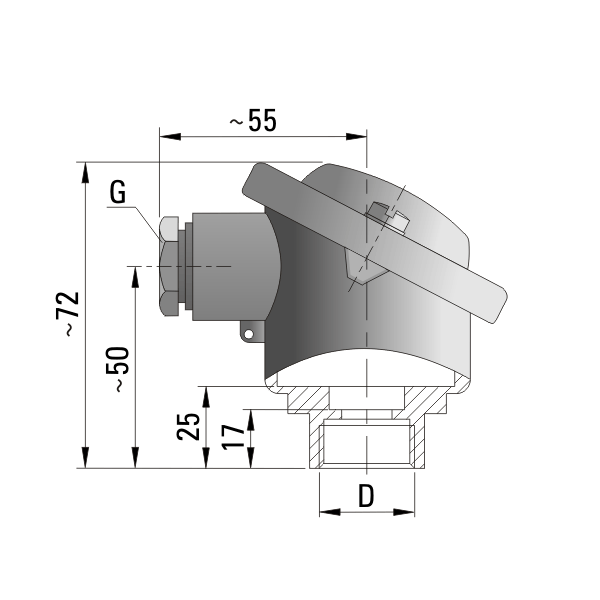

| BA | aluminium RAL9006 | M24x1,5 | P16 | IP 54 | BA-M24 |

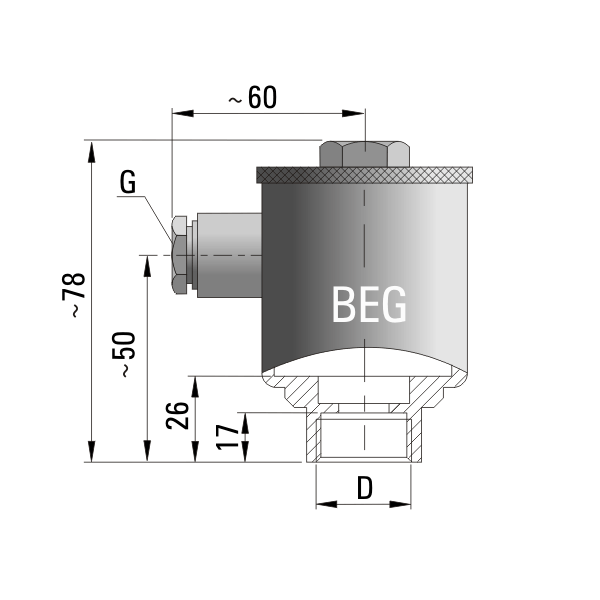

| BEG | stal kwasoodporna SS316 | M24x1,5 | M20x1,5 | IP 65 | BEG |

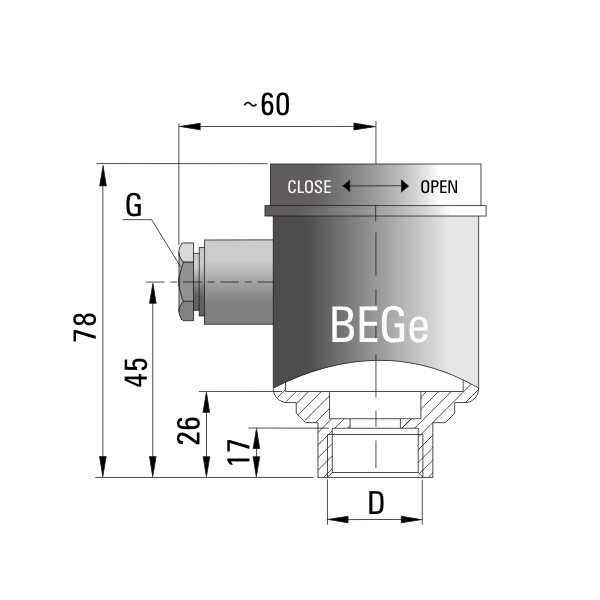

| BEGe | stal kwasoodporna SS316 | M24x1,5 | M20x1,5 | IP 54 | BEGe |

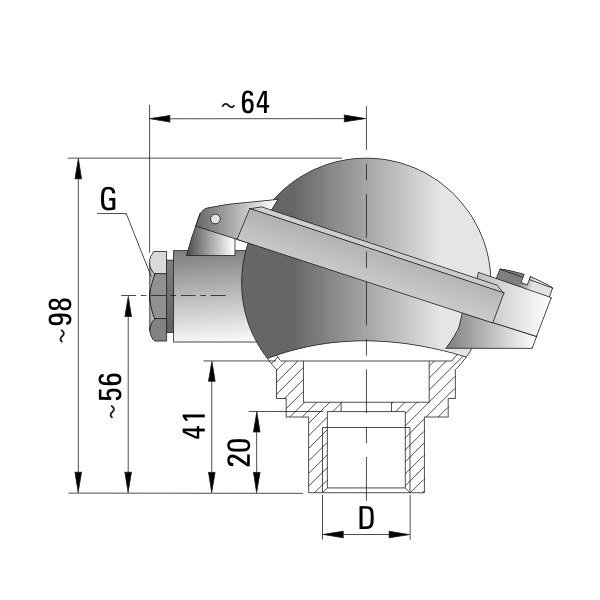

| Typ DAA | aluminium RAL9006 | Ø32,5 | P16 | IP 54 | DAA-32 |

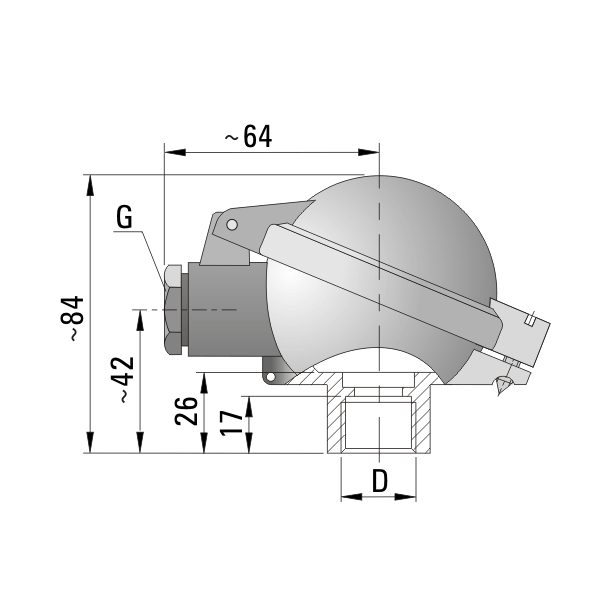

| DANA | aluminium RAL9006 | M24x1,5 | M20x1.5 | IP 54 | DANA-M24 |

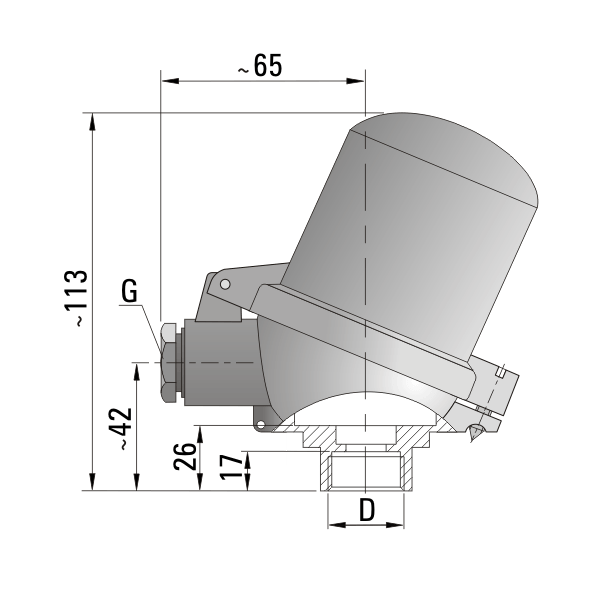

| DANAW | aluminium RAL9006 | M24x1,5 | M20x1,5 | IP 54 | DANAW-M24 |
| DNAG | aluminium RAL9006 | G1/2” | M20x1,5 | IP 65 | DNAG-G |
| MAA | aluminium RAL9006 | M10x1 | P9 | IP 54 | MAA-M10 |

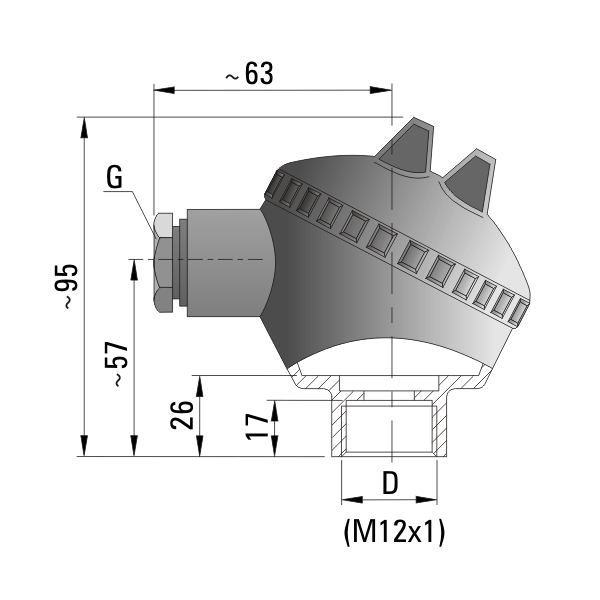

| MAA | aluminium RAL9006 | M12x1 | P9 | IP 54 | MAA-M12 |
| NS | politlenek fenylu czarny | M20x1,5 | P16 | IP 54 | NS-M20 |

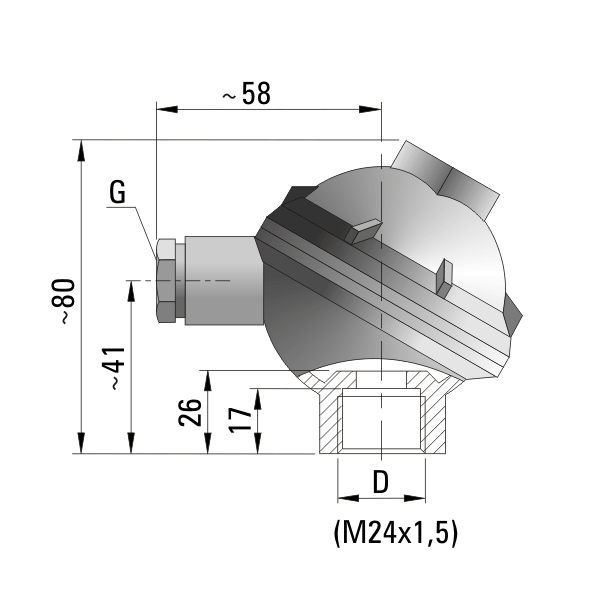

| NS | politlenek fenylu czarny | M24x1,5 | P16 | IP 54 | NS-M24 |

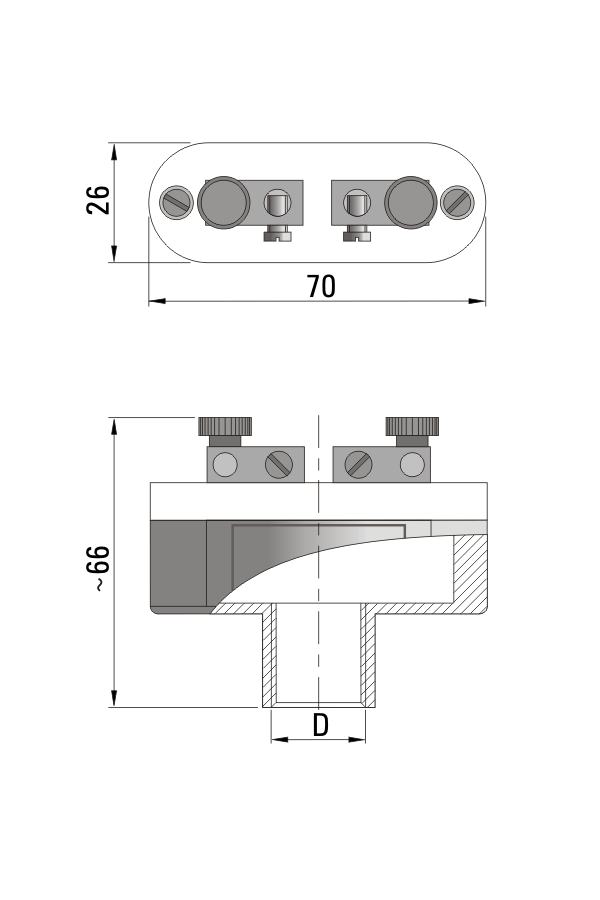

| TL | aluminium RAL9006 | G1/2” | IP 00 | TL | |

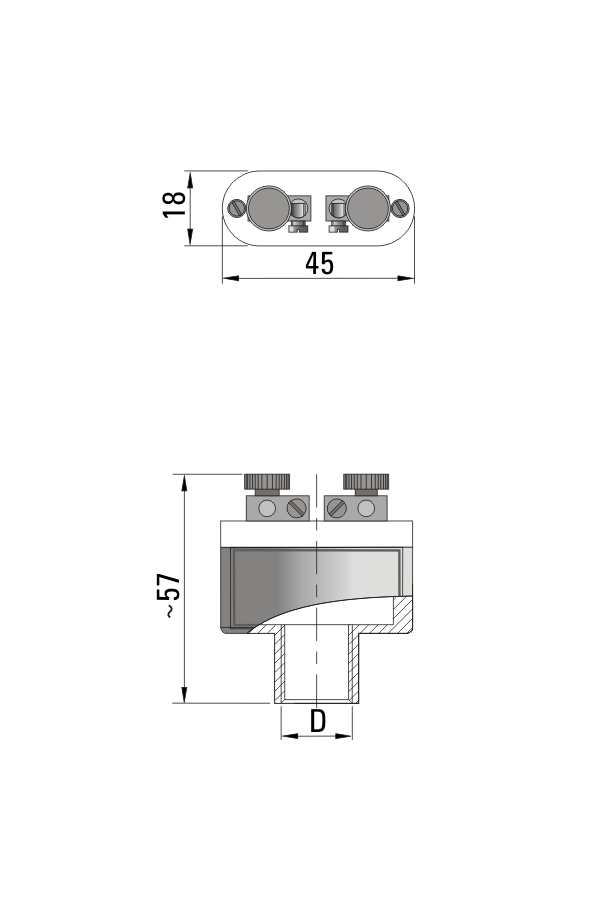

| TS | aluminium RAL9006 | G1/4” | IP 00 | TS |
