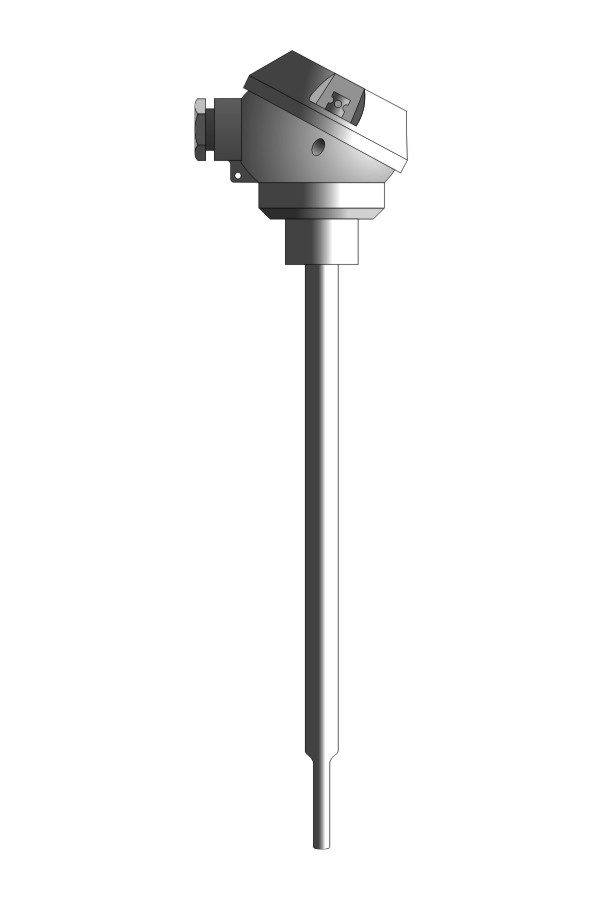

Czujnik temperatury TP-471_472

Czujnik temperatury TP-471_472

Czujnik temperatury TP-471_472

Opis produktu

Czujnik do pomiaru temperatury gazów, cieczy lub ciał stałych.

Dane techniczne

Zakres pomiarowy	-40÷550°C opornik platynowy Pt100 ⁽¹⁾
	-40÷400°C termoelement Cu-CuNi (T)
	-40÷600°C termoelement Fe-CuNi (J)
	-40÷900°C termoelement NiCr-NiAl (K)
Klasa elementu przetwarzającego	2 (B) ⁽³⁾
Materiał doprowadzeń (Pt100)	drut Cu/Ni
Montaż	2, 3, 4 przewodowy (Pt100)
Rodzaj spoiny termoelementu	izolowana ⁽²⁾
Typ głowicy	B lub MA ⁽⁴⁾
Materiał osłony	stal 1H18N9T

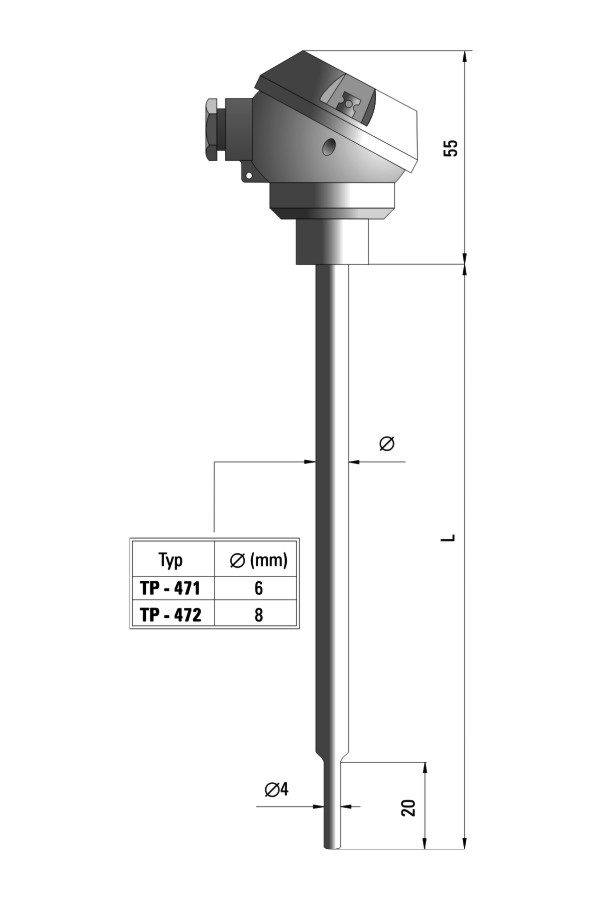

Średnica osłony Ø ⁽⁵⁾
TP-471	6
TP-472	8
Długość czujnika L	200, 300, 400, 600, 800, 1000 mm ⁽²⁾
Wyposażenie dodatkowe	króciec przesuwny KP
	uchwyt zaciskowy UZ
	przetwornik pomiarowy T (specyfikacja)
	przewód kompensacyjny

⁽¹⁾ na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ inne parametry na życzenie
⁽³⁾ na życzenie inna klasa elementu przetwarzającego: 1 (A)
⁽⁴⁾ na życzenie głowica z IP65 lub kwasoodporna (głowice
czujnikowe)
⁽⁵⁾ na życzenie osłony o średnicy 10 i 15 mm

Załączniki do produktu

TP-471_472 karta katalogowa
